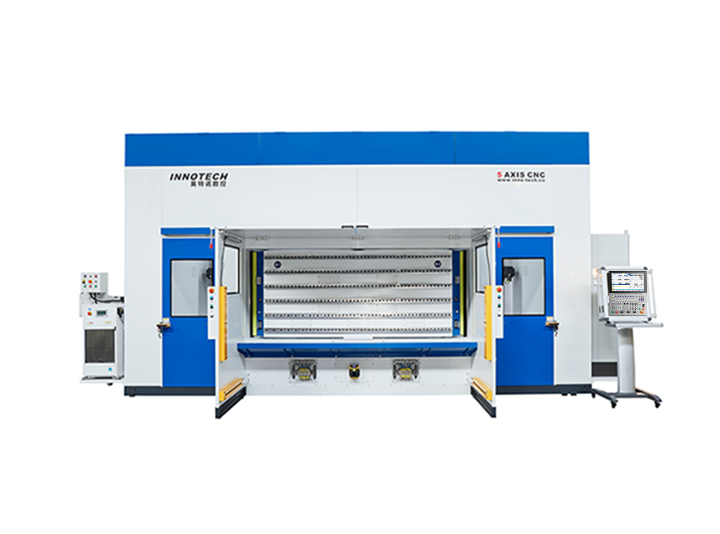

- Horizontal five-axis
The horizontal five-axis main axle box moves in Y direction on the column, and the main shaft ram moves in Z direction. The column moves in X direction. The table is a rotary table, suitable for small and medium-sized parts processing, workpiece loading and unloading and cutting time can be overlaps, saving product clamping time, thereby improving work efficiency.

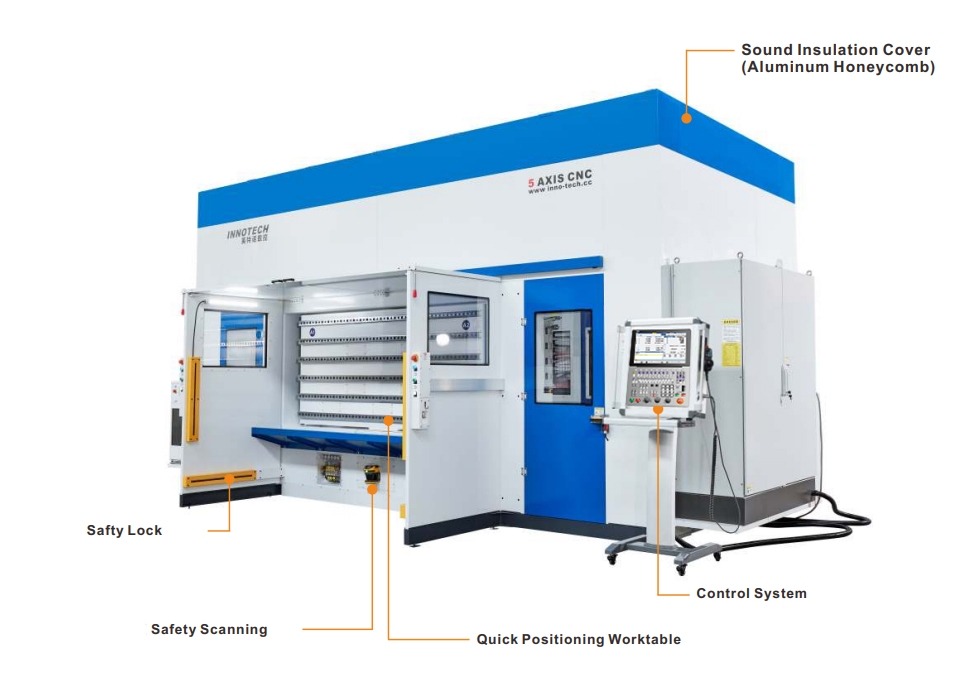

■ Two worktables, efficiency increased by 50%.
■ Working and loading area are separate - higher-s afety.
■ Variety interface, compatible with all kinds of fixture.
■ Sound ins ulaion cover reduces noise.
|
技术参数Parameter
|
VMC2612
|
可选Optional
|
|
|
行程/Stroke
|
|
X1/X2
|
3100mm
|
3000mm~4500mm
|
|
Y
|
1700mm
|
1500mm~2000mm
|
|
Z
|
850mm
|
800mm~1000mm
|
|
A/C
|
±120°/±540°
|
-
|
|
工作台 Worktable
|
|
承重loading
|
500kg
|
200~800kg
|
|
尺寸Size
|
2600mm*1200mm
|
-
|
|
快移速度 GO Speed
|
|
X/Y
|
60m/min
|
40~80m/min
|
|
Z
|
40m/min
|
20~40m/min
|
|
AC
|
30rpm
|
30~60rpm
|
|
主轴 Spindle
|
|
功率Power
|
9KW
|
4.6~17KW
|
|
转速Speed
|
36000rpm
|
24000~40000rpm
|
|
配置 Configuration
|
|
数控系统Control System
|
西门子Siemens
|
铼钠克Lynuc
|
|
伺服系统Servo System
|
西门子Siemens
|
安川Yaskawa
|
|
线导轨 Linear Guide
|
力士乐Rexroth
|
-
|
|
传动系统Drive System
|
阿尔法Alpha
|
-
|
