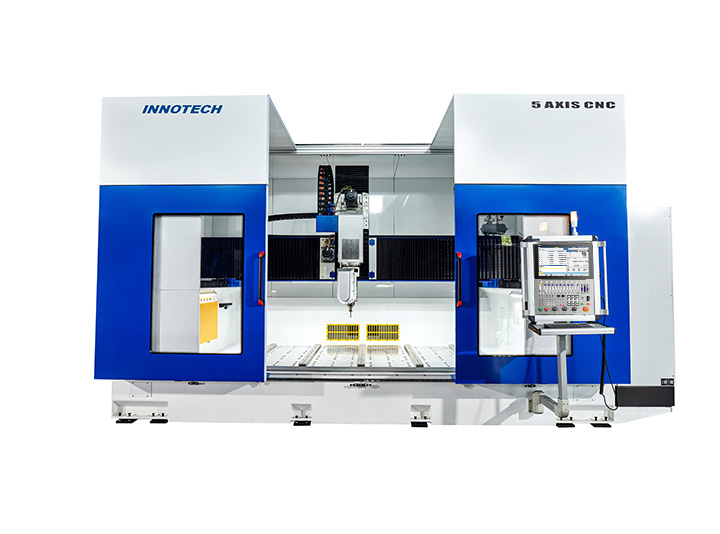

- 动梁式五轴

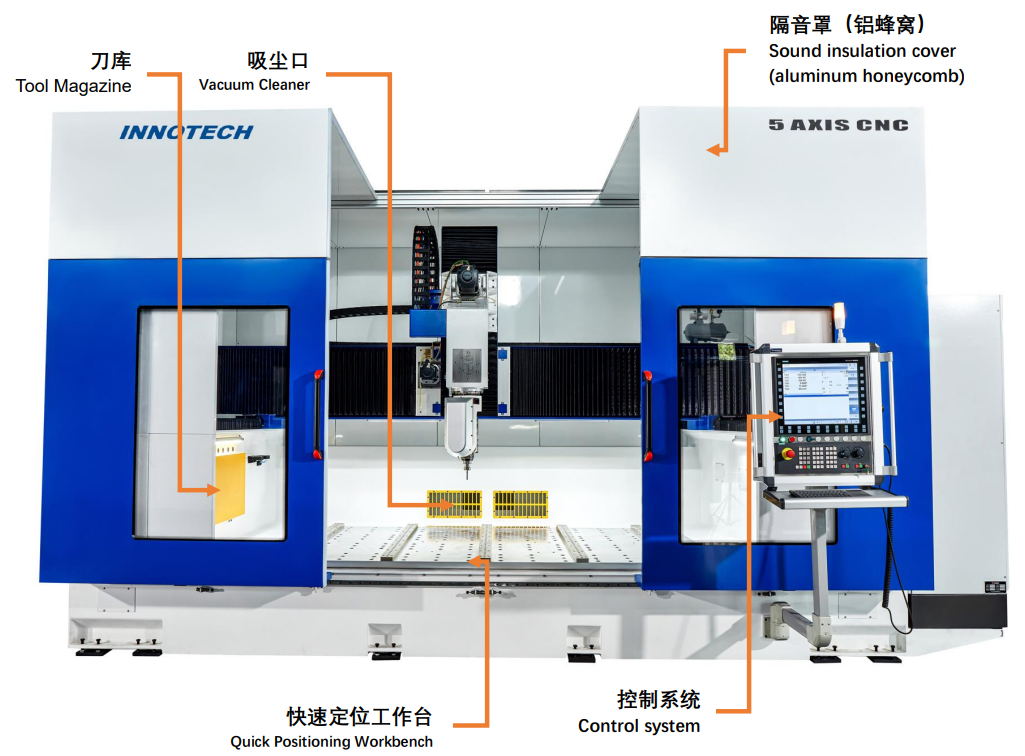

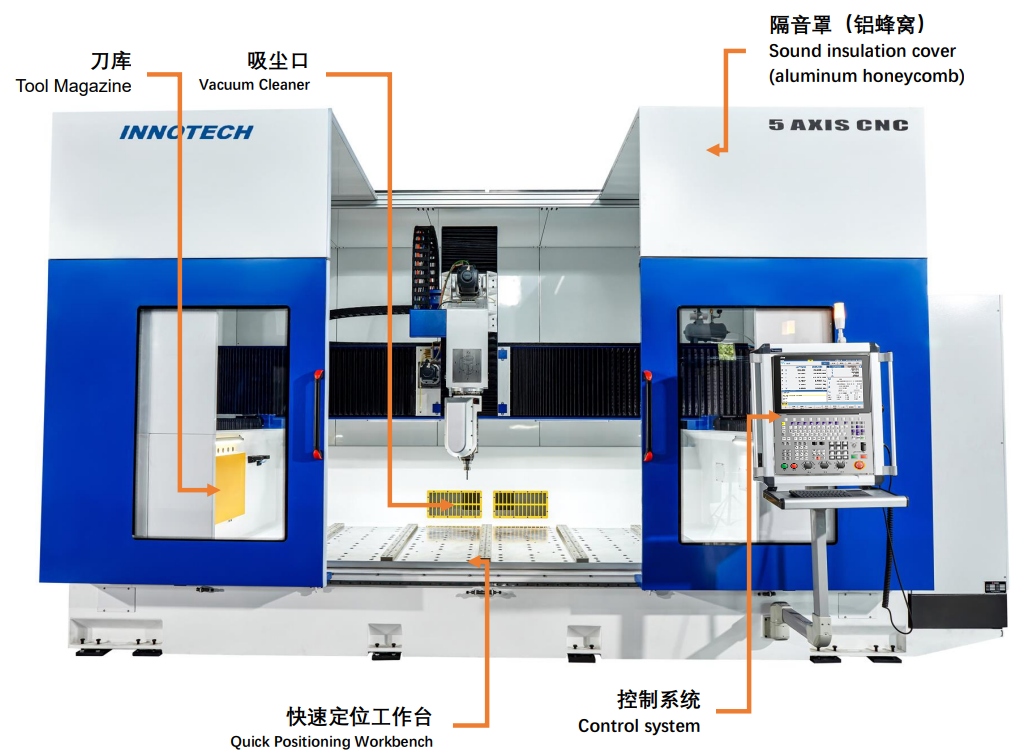

动梁式龙门加工中心采用梁式结构,即横梁平行于工作台,立柱固定在床身上,具有高刚性和稳定性、大工作台容量、多轴操作能力、高速度的特点,适用于大型工件的加工行业。
■
开顶式设计,方便工装夹具装卸;
Two worktables, efficiency increased by 50%.Open top design, convenient for loading and unloading of f ixtures;
■ 物理隔离加工区域,安全性高;
Protective cover, effectively avoiding dust and noise pol lution;
■
防护罩有效避免粉尘、噪音污染;
Protective cover, effectively avoiding dust and noise pol lution;
■
整体式结构,保证机床稳定性;
Integrated structure ensures the stability of the machine tool ;
技术参数Parameter
|
B2-302010D
|
可选Optional
|
|
行程/Stroke
|
X
|
3000mm
|
2500mm~4000mm
|
Y
|
2000mm
|
1000mm~2500mm
|
Z
|
1000mm
|
500mm~1200mm
|
A/C
|
±120°/±540°
|
-
|
工作台 Worktable
|
承重loading
|
1000kg
|
1000-3000kg
|
尺寸Size
|
3000mm*2000mm
|
-
|
快移速度 GO Speed
|
X/Y
|
40m/min
|
40~80m/min
|
Z
|
30m/min
|
20~40m/min
|
AC
|
30rpm
|
30~60rpm
|
主轴 Spindle
|
功率Power
|
17KW
|
4.6~35KW
|
转速Speed
|
24000rpm
|
24000~36000rpm
|
配置 Configuration
|
数控系统Control System
|
西门子Siemens
|
铼钠克Lynuc
|
伺服系统Servo System
|
西门子Siemens
|
安川Yaskawa
|
线导轨 Linear Guide
|
力士乐Rexroth
|
-
|
传动系统Drive System
|
阿尔法Alpha
|
-
|
